High-Performance SF6 Gas Tester [KS30-3]: Accurate Detection of Humidity, Purity & SO₂ for Reliable Power Equipment Maintenance

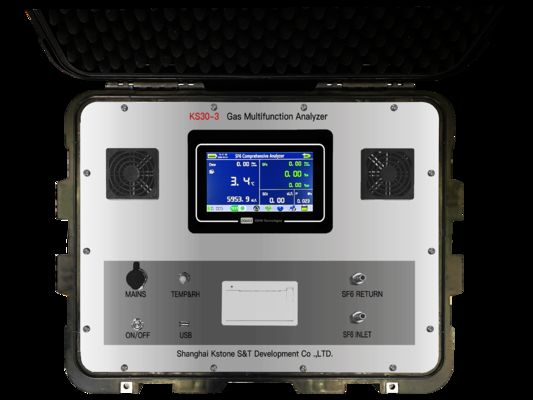

Grote Afbeelding : High-Performance SF6 Gas Tester [KS30-3]: Accurate Detection of Humidity, Purity & SO₂ for Reliable Power Equipment Maintenance

Productdetails:

Plaats van herkomst:	Shanghai
Merknaam:	KSTONE
Certificering:	ISO9001
Modelnummer:	KS30

Betalen & Verzenden Algemene voorwaarden:

Prijs:	$12000-$25000
Verpakking Details:	Doos / houten doos
Levertijd:	10 werkdagen
Betalingscondities:	T/t
Levering vermogen:	100 sets/jaar

Contact

Gedetailleerde productomschrijving

Reactietijd:	+20 → -20 ℃ TD: 5S [45S], -20 → -60 ℃ TD: 10S [240s]	Oplossing:	Dauwpunt: 0,1 ℃ of 0,1ppm
Gasdebiet:	0,25 ～ 0,35 l/min	Drukmeting:	0 ～ 1.0mpa
SF6 zuiverheidsbereik:	0 ～ 100% SF6	Nauwkeurigheid en herhaalbaarheid:	± 0,1%, onafhankelijk van het stroomsnelheid

High-Performance SF6 Gas Tester [KS30-3]: Accurate Detection of Humidity, Purity & SO₂ for Reliable Power Equipment Maintenance

Product Positioning and Core Value

As a precise detection model in the KS30 series, KS30 - 3 relies on the Chinese industry standards (DL/T1366 - 2018, DL/T1353 - 2024) that the parent company participated in formulating. It adopts a modular design concept, focusing on the detection of key indicators of SF₆ gas in power equipment. It provides stable and reliable detection data support for the safe operation and condition evaluation of SF₆ equipment in power systems, and is especially suitable for scenarios that require precise detection of SF₆ gas humidity, purity and core decomposition product (SO₂).

Core Technical Parameters

1. Core Detection Module Parameters

SF6 Humidity
Measurement Range	Dew point: -80～+20℃ (Supports ppmv, etc.)
Dew Point Accuracy	±1℃ (When the dew point temperature is lower than 0℃, the sensor output is the frost point)
Response Time	63％[90％] +20→-20℃ Td: 5s[45s] -20→-60℃ Td: 10s[240s]
Resolution	Dew point: 0.1℃ or 0.1ppm
Gas Flow Rate	0.25～0.35L/min Equipped with an electronic mass flowmeter No impact from the sample gas flow rate
Pressure Measurement	0～1.0MPa
Probe Protection	Stainless steel sintered filter screen
SF6 Purity
Range	0～100% SF6
Accuracy and Repeatability	±0.1%, independent of flow rate
Response Time	30S
SF6 Decomposition Products
SO2	Measurement range: 0～100ppm Accuracy: ≤±0.5%
Sensitivity	0.1 ppm
Repeatability	≤±1%
General Part
Operating Voltage	220VAC±10%, 50Hz. Both AC and DC available. Overcharge protection. Continuous working time is not less than 5 hours.
Storage Temperature Range	-40～+70℃
Output Interface	Compliant with USB1.1 specification
Data Storage	Can store 200 records
Operating Environment	Temperature: -30～+60℃ Pressure: 0～20bar Sample Gas Flow Rate: No impact
Other Configurations	Standard version management software, including report printing and commonly used humidity conversion toolkit
Dimensions	132×283×308 (presumably in mm, if not, please clarify the unit)

High-Performance SF6 Gas Tester [KS30-3]: Accurate Detection of Humidity, Purity & SO₂ for Reliable Power Equipment Maintenance 0

Dew Point Display Area (Operable)
Purity Display Area
CO Indication Value
SO2 Indication Value
H2S Indication Value
Back Key
"Storage" Key
"Print" Key
"Cleaning" Key
"Calibration" Key
Ambient Temperature and Humidity

Selection of KS30 Series Comprehensive Testers

Model	Purity	Dew Point	SO₂	H₂S	CO	HF	Equipped with Recycling Function
KS30	√	√	√	√	√
Ks30-6	√	√	√	√	√	√
KS30-3	√	√	√
KS30-T			√	√	√
KS30-TC	√		√	√	√
KS30-CS	√	√
KS30-4			√	√	√	√
KS30-C3	√		√	√	√
KS30-C4	√		√	√	√	√
KS30-C	√
kS30-R-*							√

SF6 comprehensive testers, except for a few commonly used models, are basically modular customized.

We will provide customized services based on customer needs.
